Stadium Perimeter LED Display
Our sports perimeter LED display is designed for stadiums and arenas, it offers high brightness and stunning clarity, ensuring your brand stands out with exceptional quality at any environment. With its rugged construction and vibrant visual performance, delivering impactful messaging in a compact footprint, increasing fan engagement and brand awareness.
-
Portable and Slim
• sports perimeter led panel is used aluminum profile.

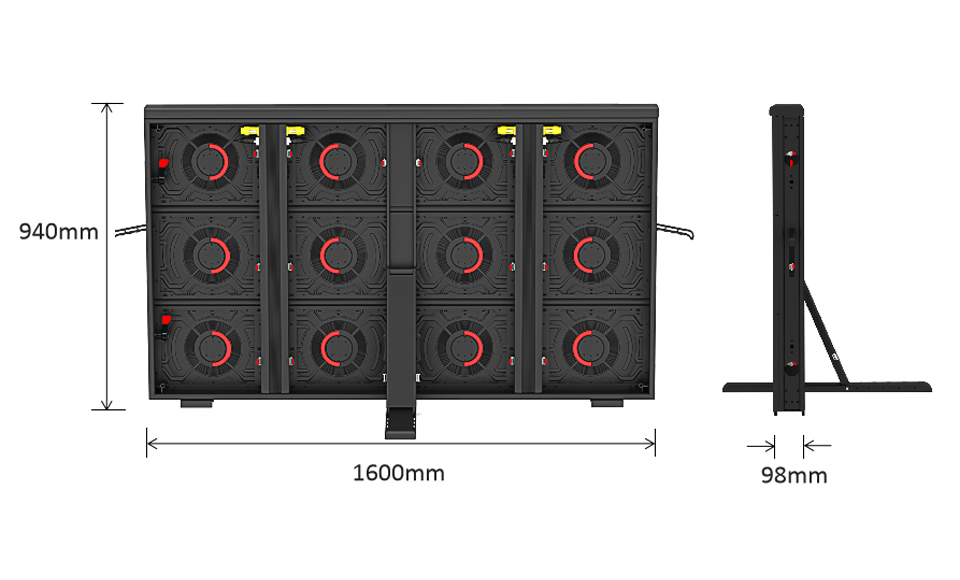

• 35kg/panel, 98mm depth, easy to move, install and disassemble.
-

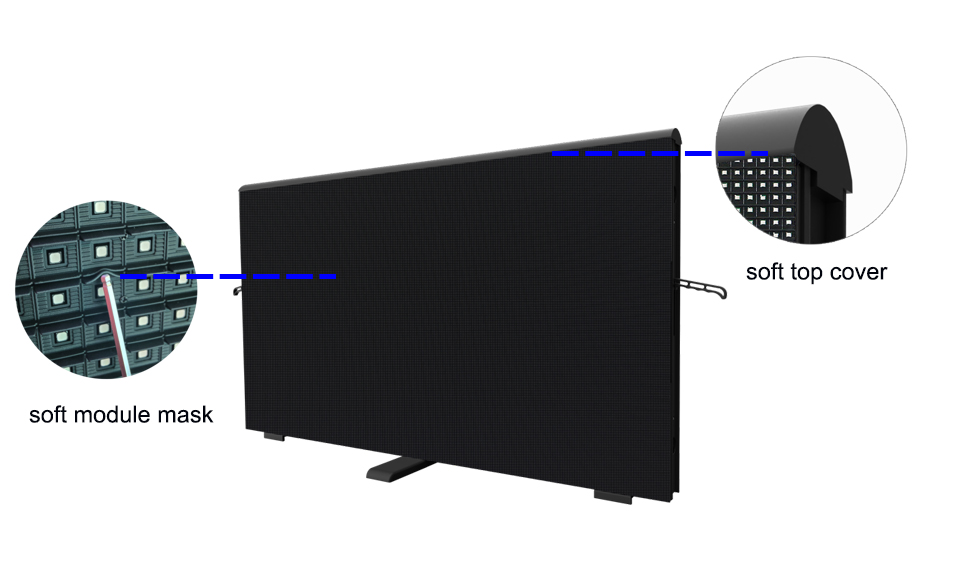

Soft Mask Design

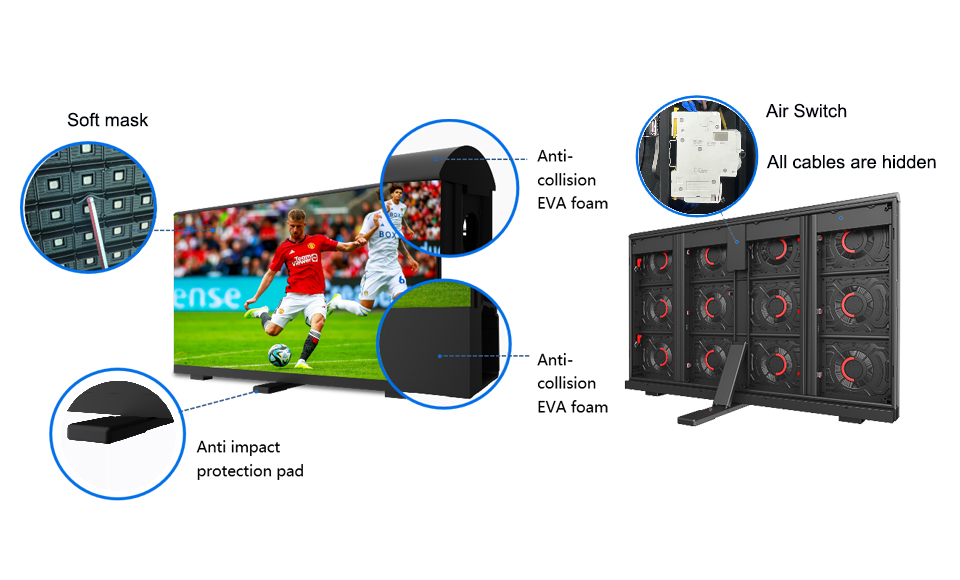

• The cabinet is designed with soft modular surface mask and soft top cover to effectively protect the life of the athlete.
-

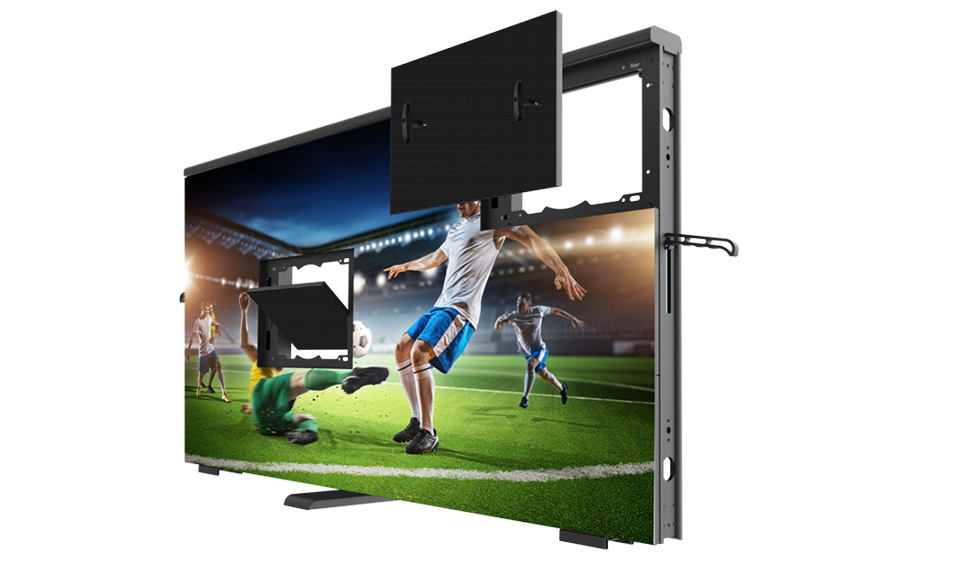

Front and Rear Service
• It supports front and rear maintenance for all accessories, simple and fast.
-

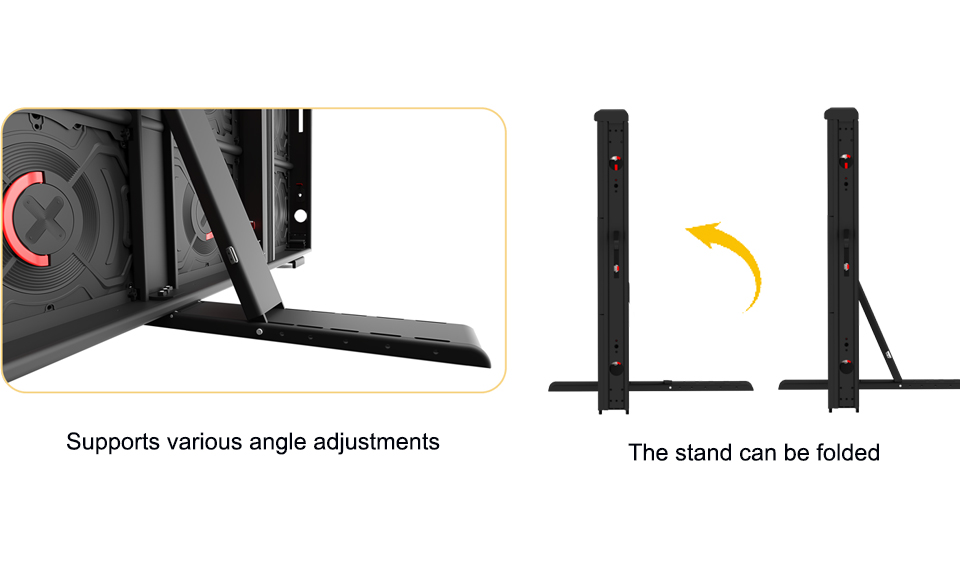

Adjustable Angle
•The cabinet angle can be adjusted within the range of 90°, 95°, 100°, 105°, 110°, 115°, which can meet the needs of various scenarios
-
FIFA&UEFA Stadium Standards
•Designed in compliance with FIFA&UEFA standards, with shared backup of power supply current and independent RCD protection.
•Each cabinet has an air switch (circuit breaker) to protect the LED panel against short circuits, overloads and leakage currents.
-

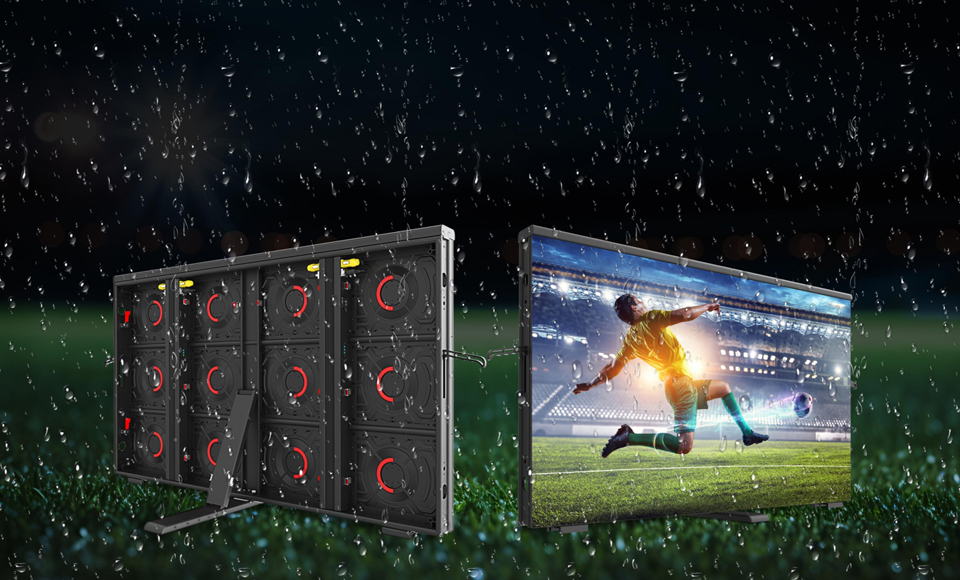

High Durability
•100% sealed cabinet and internal connection design can reach IP65 high protection level, with the advantages of waterproof, dustproof, UV resistance, anti-interference, etc., to ensure stable work in any harsh outdoor environment.
|
Model |
P6.25 |
P8.33 |
P10.42 |
|
Pixel Pitch |
6.25mm |
8.33mm |
10mm |
|
LED Module Size(mm) |
400x300 |
400x300 |
400x300 |
|
Cabinet Size:(mm) |
1600x900x98 |
1600x900x98 |
1600x900x98 |
|
Cabinet Weight(kg) |
35kg |
35kg |
35kg |
|
Max. Power Consumption(w/㎡) |
<650 |
<650 |
<650 |
|
Brightness |
1000-7000nits(adjustable) |
1000-7000nits(adjustable) |
1000-7000nits(adjustable) |
|
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
|
IP Rating |
IP65 |
IP65 |
IP65 |
