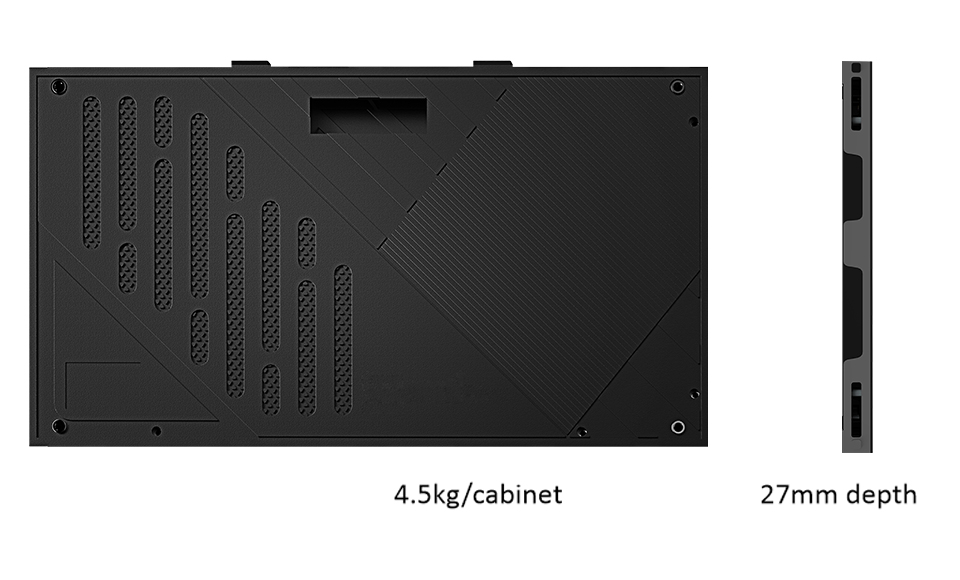

• Our narrow pixel pitch LED display is super thin, with a thickness of just 27mm and a weight of only 4.5KG, saving the installation space and edge covering cost. It is suitable for customers who looking for portable and easy installation.
• Pixel-to-pixel calibration technology enables higher color fidelity and uniformity.

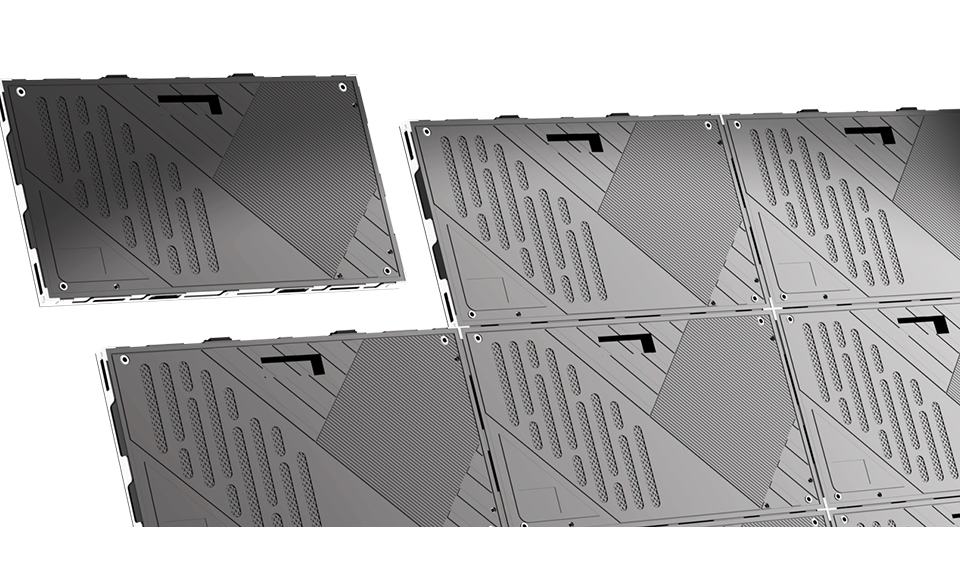

• No need connect cables between cabinets, plug it and play it,fast installation and high durability.
•With support for HDR10 and HDR10+ video playback, this screen displays more detailed picture dynamics, creating a lifelike viewing experience, ideal for electronic billboard advertising and airport LED screens.
•Adopting CNC high-precision die cast aluminum casing 、hard link design ,anti collision concave and convex platform, multi-dimensional improvement of screen flatness
•The 16:9 aspect ratio panel allow native 2k/4k pixel to pixel resolution.
Model |
P0.78 |
P0.9375 |
P1.25 |
P1.56 |
P1.875 |
Pixel Pitch |
0.78mm |
0.9375mm |
1.25mm |
1.56mm |
1.875mm |
LED Module Size(mm) |
150x168.75 |
150x168.75 |
150x168.75 |
150x168.75 |
150x168.75 |
Cabinet Size:(mm) |
600x337.5x27 |
600x337.5x27 |
600x337.5x27 |
600x337.5x27 |
600x337.5x27 |
Cabinet Weight(kg) |
4.5kg |
4.5kg |
4.5kg |
4.5kg |
4.5kg |
Brightness(nits) |
>600 |
>600 |
>600 |
>600 |
>600 |
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
IP Rating |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
