Soft LED Display
Elevate your visual impact with our versatile soft LED displays. Thanks to their soft modular design and magnetic attraction design, these displays can be customized to any size or ratio, from compact digital signage to massive LED backdrops, its flexibility supports S-shape, concave/convex curved screen, cylinder, one or double sided LED ring/circle, delivering vibrant colors and crystal-clear resolution, these screens ensure your videos and images look their absolute best.
-

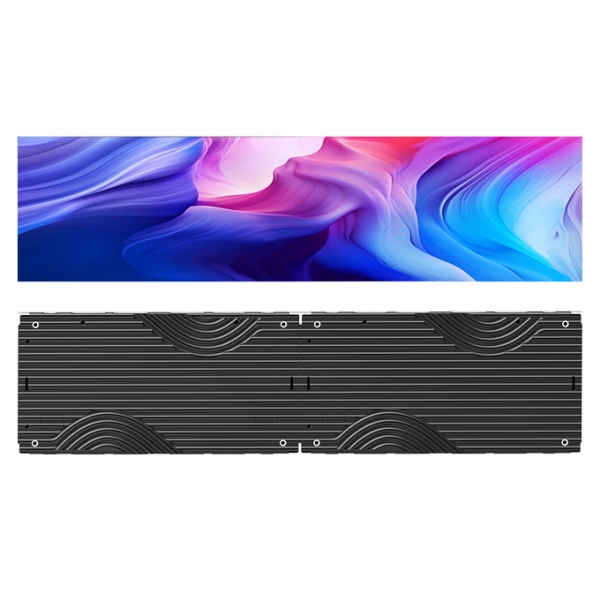

Slim and Portable
• The depth of led module is only 5mm, the weight of led module is 200g/pc.
• Available in 320x160mm, 240x120mm, 256x128mm flexible LED module sizes.
-

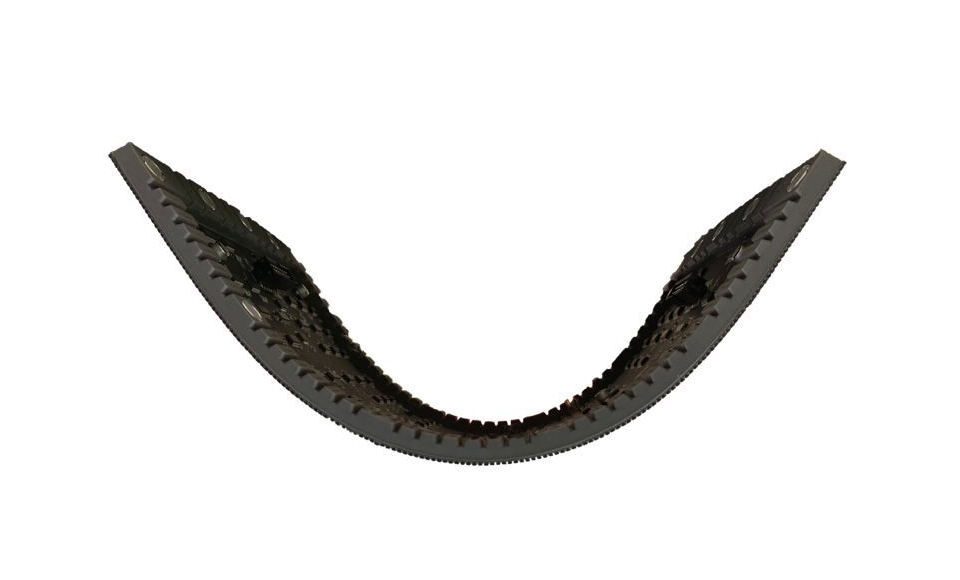

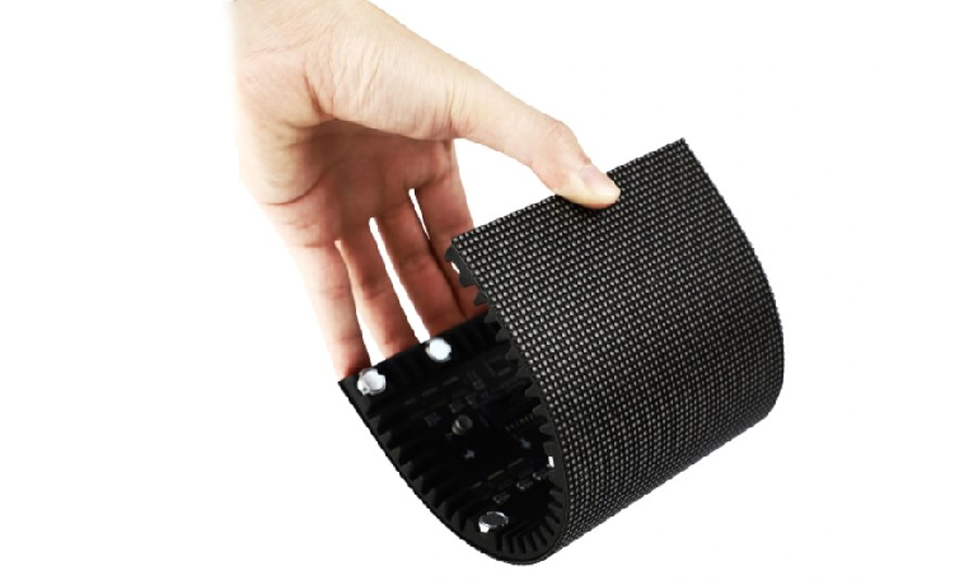

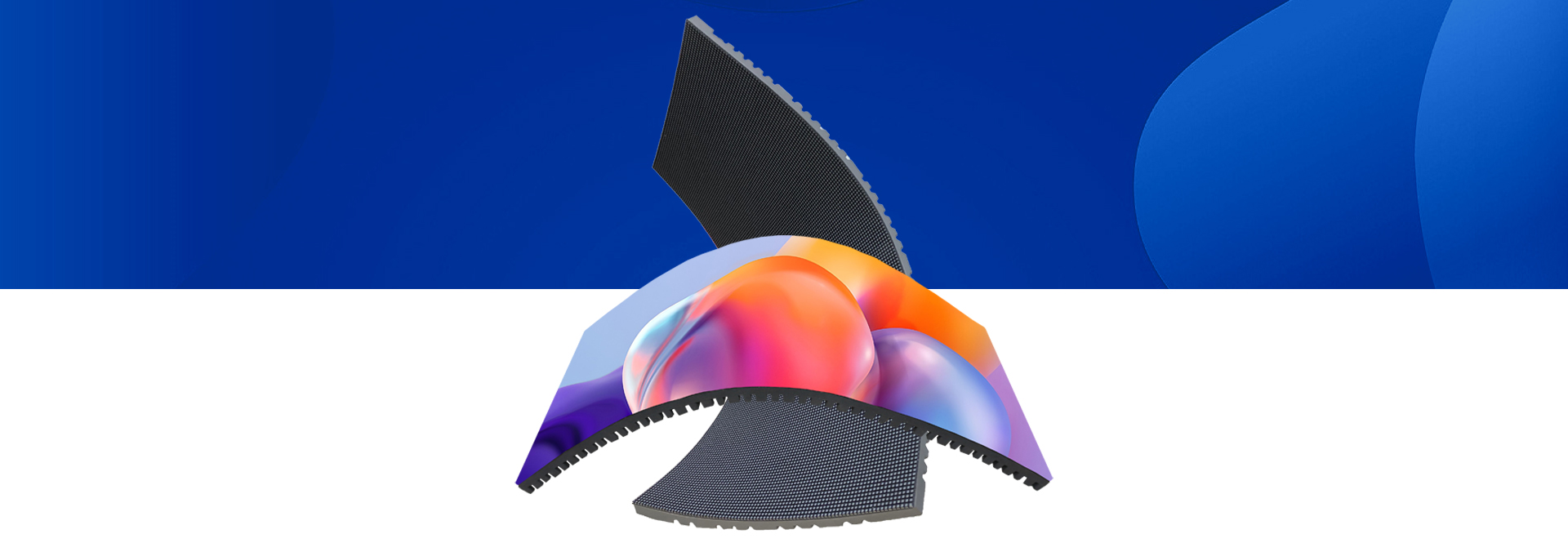

Flexible PCB Design
• The flexible PCB design can be freely bent from side to side and up and down, making it ideal for custom cylindrical and curved screen shapes.
-

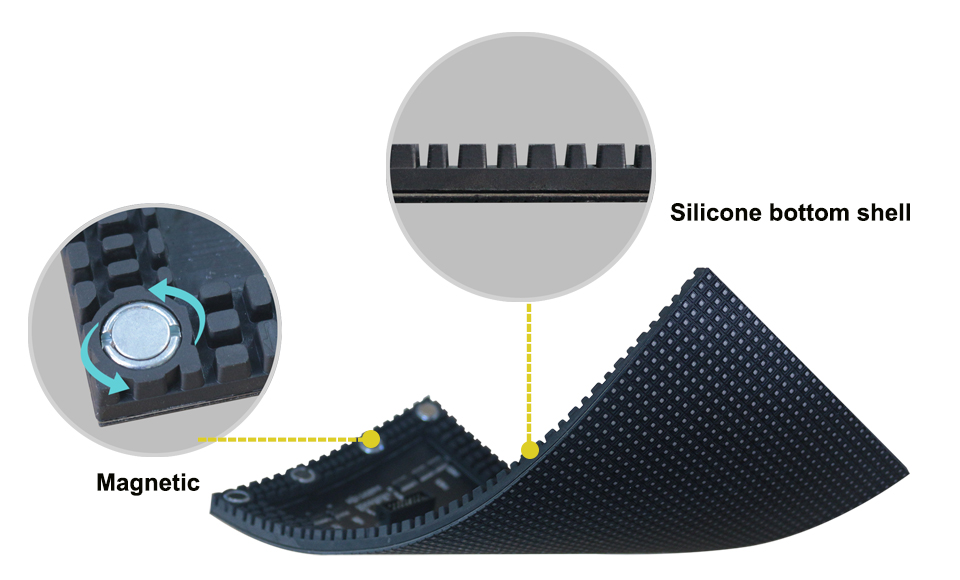

Magnetic Attraction Design
• The strong magnetic installation allows the module to be attached directly to the structure, supporting front maintenance,convenient and fast.
-

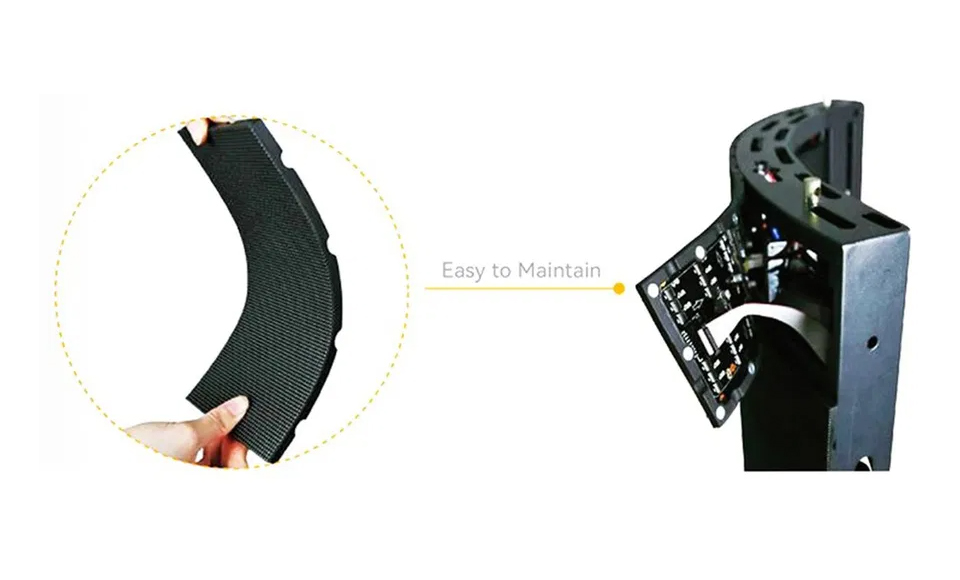

Front Installation and Service
•All led modules, power supplies, power and data cables can be installed and replaced from the front of led screen.
-
High Flatness,Seamless Splicing
•Achieve a flawless, unified image with our soft LED displays. Features like module gap and adjustable magnet heights enable true 0-seam splicing, allowing for displays of various custom sizes and shapes without visible gaps.
-

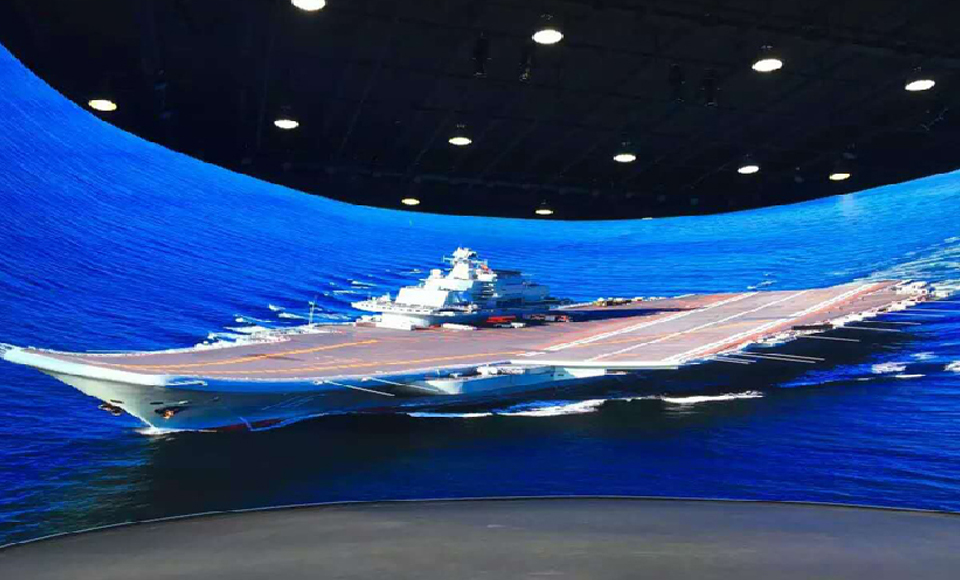

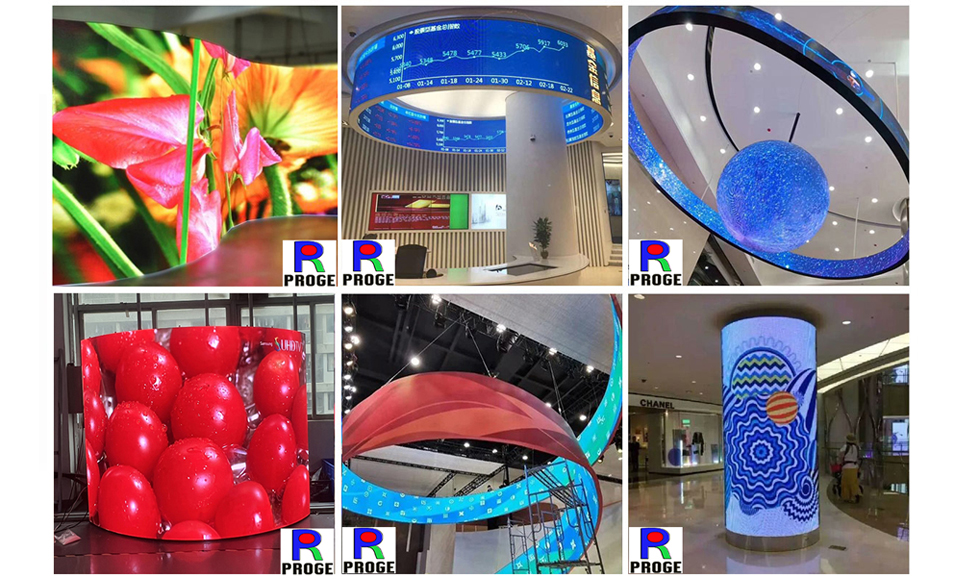

Advanced Display Shapes and Configurations
• Choose from a variety of shapes including curved, cylinder, S-shape, concave, and convex to create a unique visual experience. Our displays offer flexible design options to suit any creative or functional requirement.
|
Model |
P1.25 |
P1.5 |
P1.6 |
P1.8 |
P1.9 |
P2 |
P2.5 |
|
Pixel Pitch |
1.25mm |
1.5mm |
1.6mm |
1.8mm |
1.9mm |
2mm |
2.5mm |
|
LED Module Size(mm) |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
320x160 |
|
Cabinet Size:(mm) |
customized |
customized |
customized |
customized |
customized |
customized |
customized |
|
Cabinet Weight(kg) |
25kg/㎡ |
25kg/㎡ |
25kg/㎡ |
25kg/㎡ |
25kg/㎡ |
25kg/㎡ |
25kg/㎡ |
|
Max. Power Consumption(w/㎡) |
<700 |
<700 |
<700 |
<700 |
<700 |
<700 |
<700 |
|
Brightness(nits) |
>600 |
>600 |
>800 |
>800 |
>800 |
>1000 |
>1000 |
|
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
IP Rating |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
