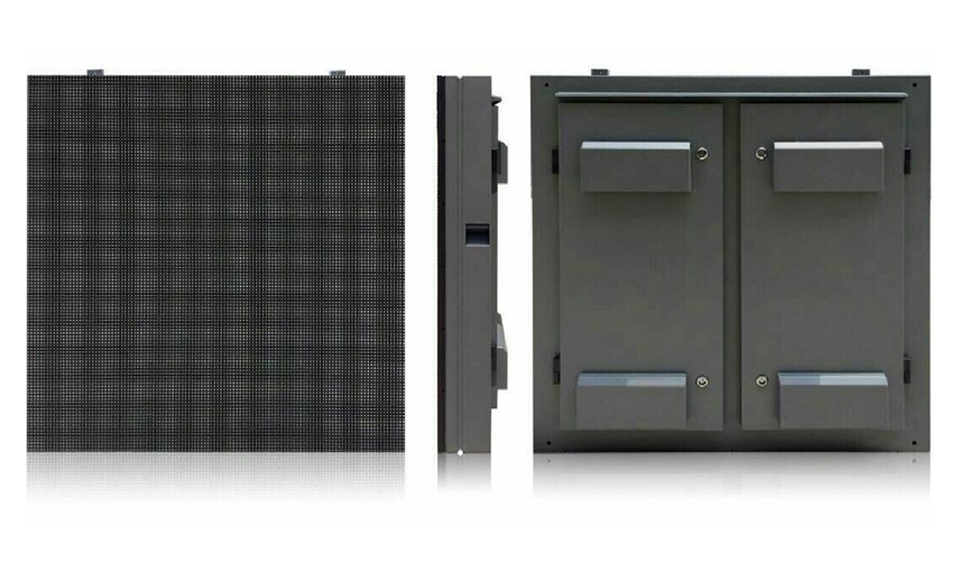

• Cabinet sizes can be customized according to different project requests,it matches with different pixel pitchs outdoor LED display from P2.5 to P10, recommend cabinet sizes 960x960mm and 768x768mm.

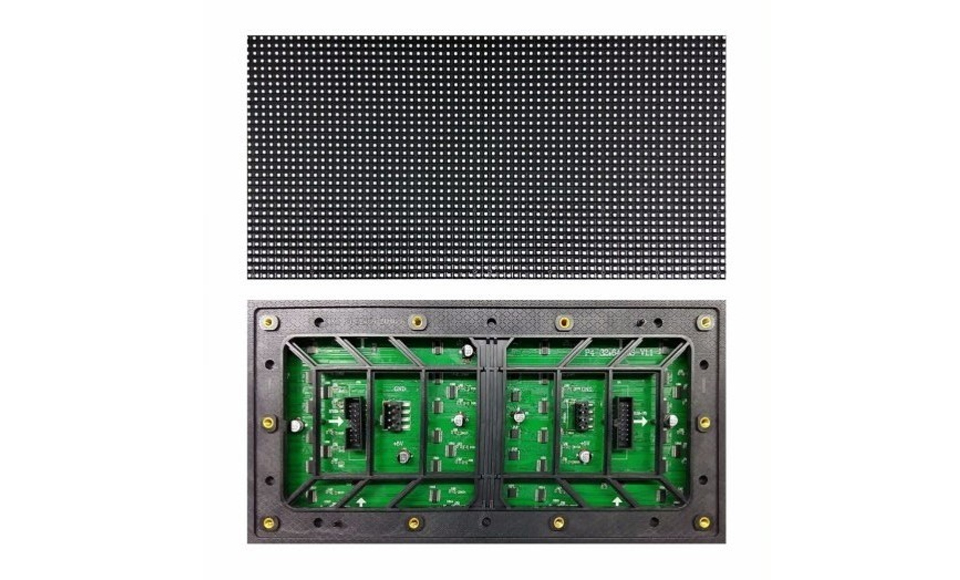

• Supports 128x64 pixels P2.5, 80x40pixels P4 and 64x32 pixels P5, 32x16 pixels P10 outdoor led modules.

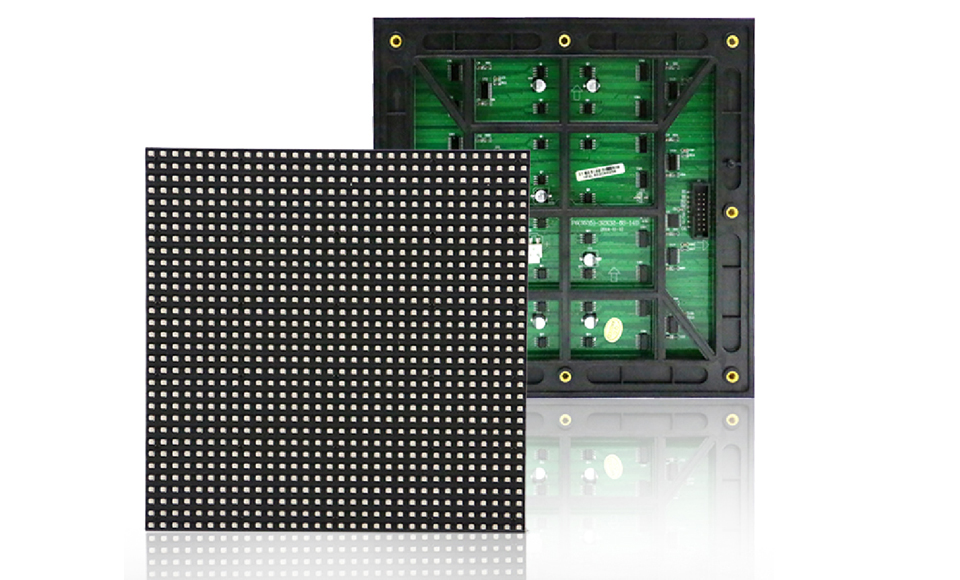

• 64x64 pixels P3 and 32x32 pixels P6 outdoor dot matrix led panels are available.

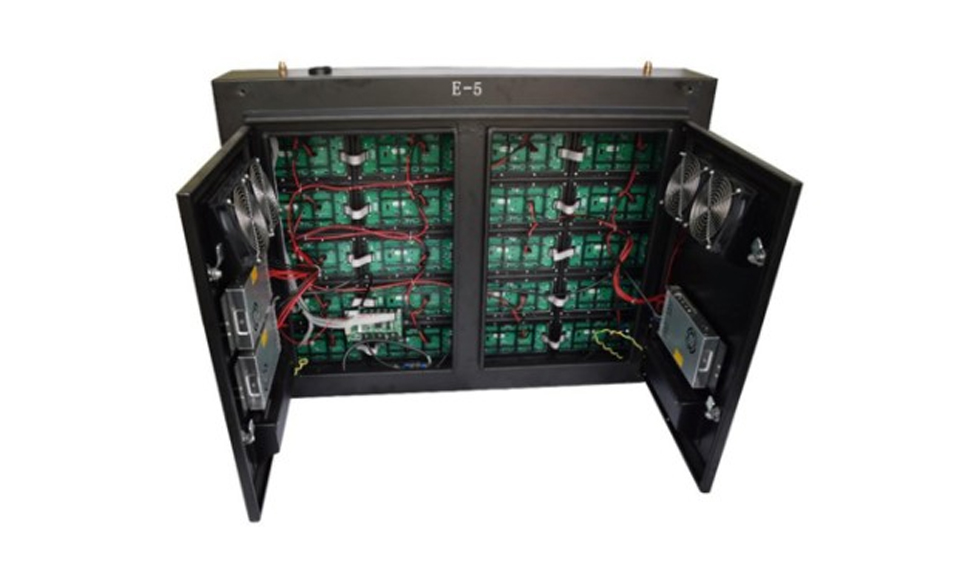

•Each cabinet has four fansfor cooling, ensuring LED screen can work properly, even in high temperature environments, and extend the life of the LED screen.
•Our outdoor advertising LED screens utilize high-end, high-brightness SMDs, which guarantee the brightness of the LED screen from the source and ensure that the content played on our LED screens is clearly visible during the day or in sunlight.

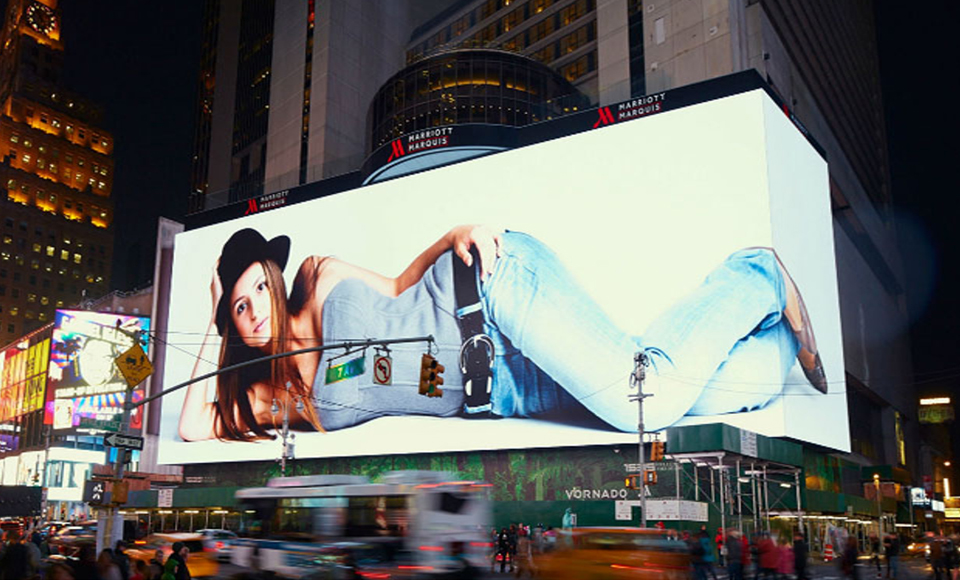

•Our LED advertising screen is waterproof,anti-corrosion,anti-UV, stable and reliable, suitable for severe outdoor environments, ideal for outdoor electronic billboards and outdoor LED advertising.
Model |
P2.5 |
P3 |
P4 |
P5 |
P6 |
P8 |
P10 |
Pixel Pitch |
2.5mm |
3mm |
4mm |
5mm |
6mm |
8mm |
10mm |
LED Module Size(mm) |
320x160 |
192x192 |
320x160/256x128 |
320x160 |
192x192mm |
320x160/256x128 |
320x160 |
Cabinet Size:(mm) |
960x960x150 |
960x960x150 |
960x960x150 |
960x960x150 |
960x960x150 |
960x960x150 |
960x960x150 |
Cabinet Weight(kg) |
30kg |
30kg |
30kg |
30kg |
30kg |
30kg |
30kg |
Max. Power Consumption(w/㎡) |
<800 |
<800 |
<800 |
<800 |
<800 |
<800 |
<800 |
Brightness(nits) |
>6500 |
>6500 |
>7000 |
>7000 |
>7000 |
>7000 |
>7000 |
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
