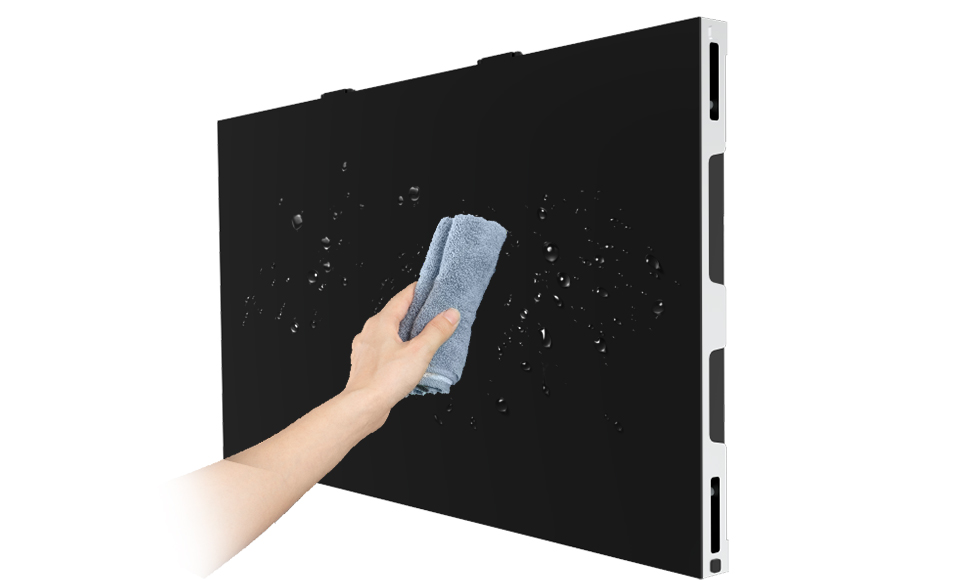

• Common cathode all flip-chip COB technology is Non holder design, ensuring led display is anti-scratch, high stability, long lifespan.
• Low brightness with high gray level and high contrast, stable dynamic display effect, the edge of the image is clear, and the visual experience is more comfortable.

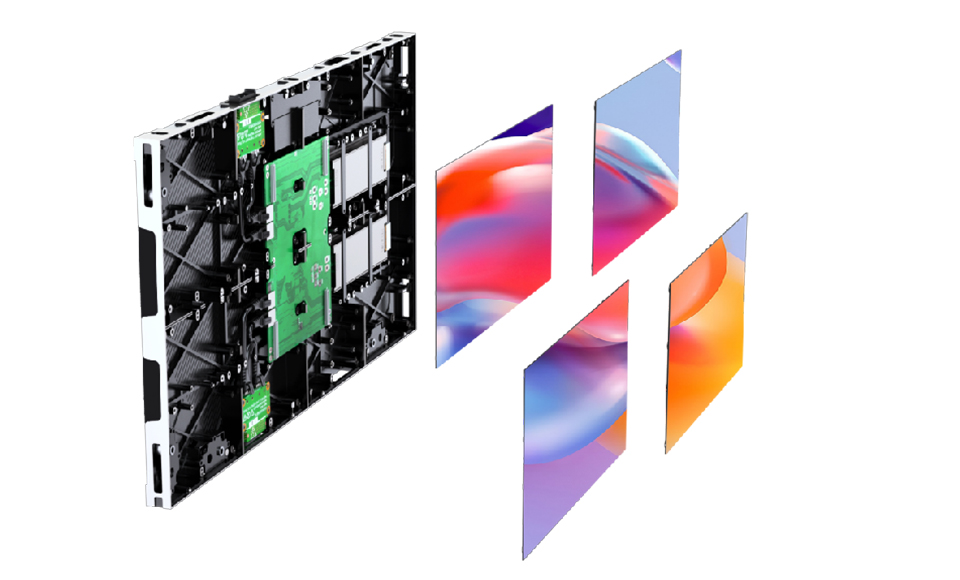

• Fully front maintenance solution,led module,power supply, cables and other parts can be installed and uninstall from the front of led screen.

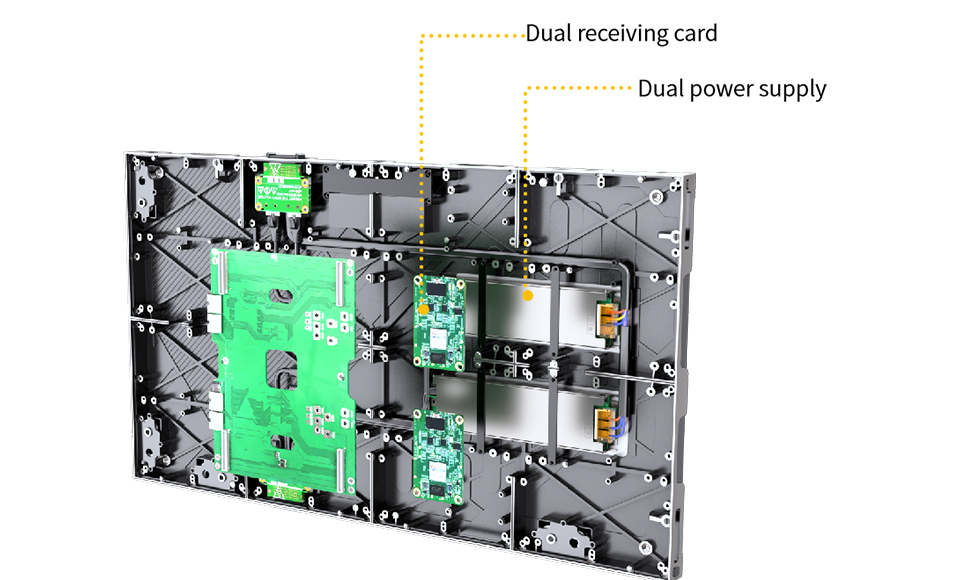

•The dual backup of signal and power ensures stable operation without downtime, making it reliable for a LED screen for conference rooms and other high-demand settings.

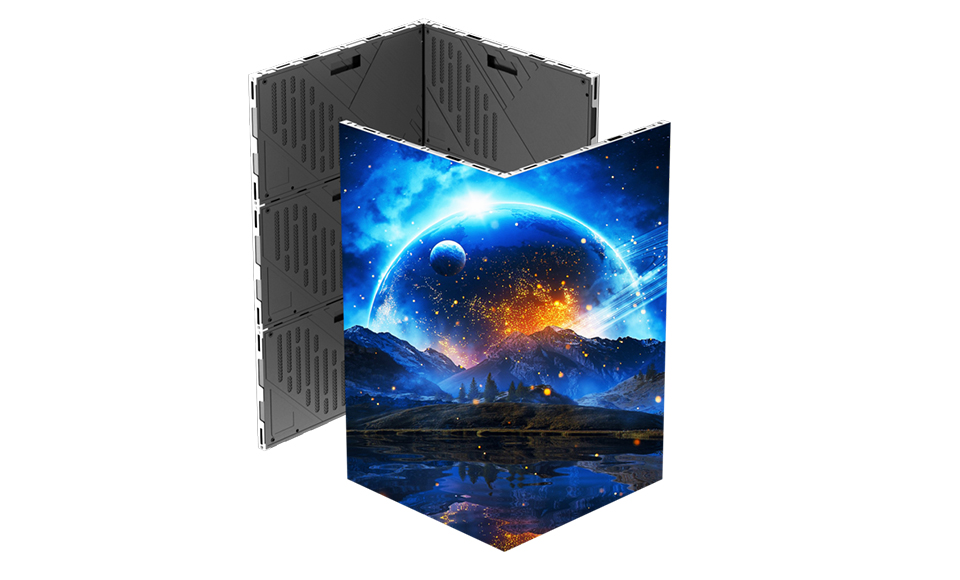

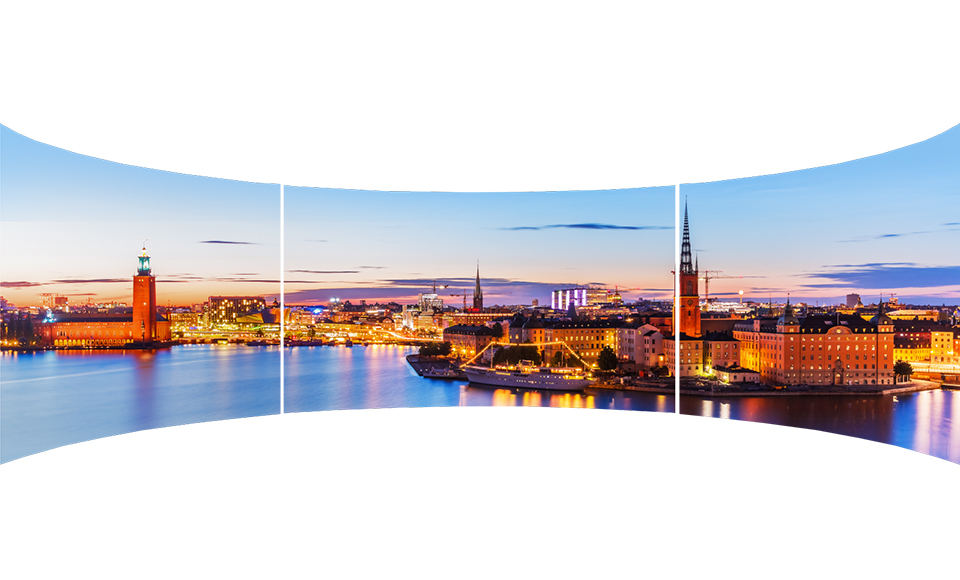

•It supports different creative shapes such as right angles and curved shapes to meet the needs of various scenarios.
•Proge COB fine pixel pitch led display provides wider viewing angles and pixel-perfect imagery, making this direct view LED video wall perfect for all your LED display needs.
Model |
P0.625 |
P0.78 |
P0.9375 |
P1.25 |
P1.56 |
Pixel Pitch |
0.625mm |
0.78mm |
0.9375mm |
1.25mm |
1.56mm |
LED Module Size(mm) |
150x168.75 |
150x168.75 |
150x168.75 |
150x168.75 |
150x168.75 |
Cabinet Size:(mm) |
600x337.5x27 |
600x337.5x27 |
600x337.5x27 |
600x337.5x27 |
600x337.5x27 |
Cabinet Weight(kg) |
4.5kg |
4.5kg |
4.5kg |
4.5kg |
4.5kg |
Brightness(nits) |
>600 |
>600 |
>600 |
>600 |
>600 |
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
IP Rating |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
